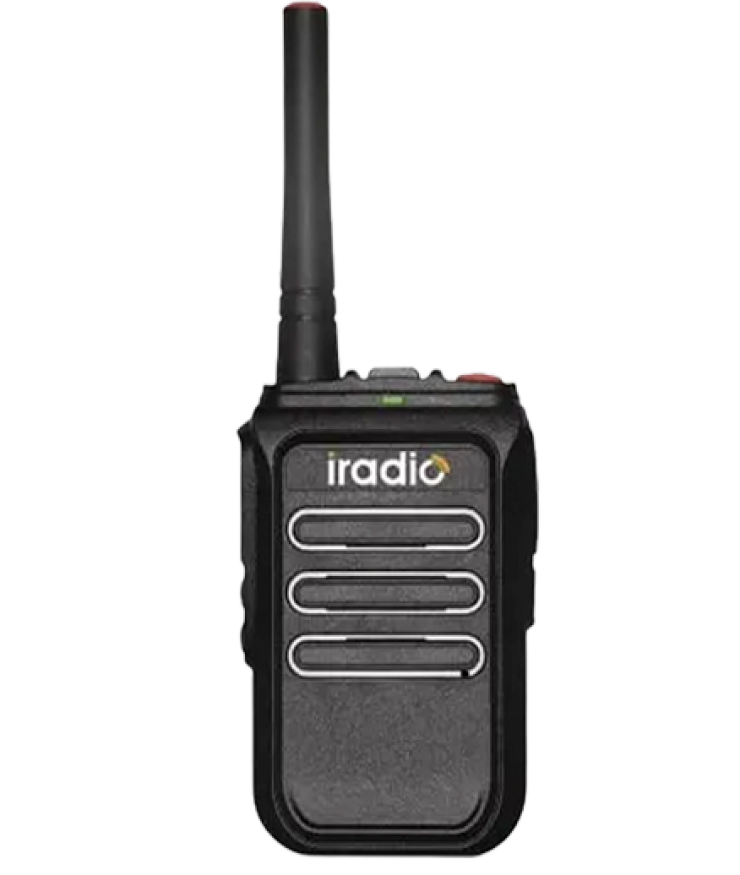

V68 Iradio

RM220

1. Long press sidekey1 to turn in monitor function 2. In the same channel, long push the toggle switch 2 seconds into [CH-] to turn on the emergency alarm in two radios 3. Long push the toggle switch 2 seconds into [CH+] to lock the keypad 4. Frequency hopping setup 5. Low battery alert 6. TOT 7. 0-9 Squelch level 8. Battery save

Category: Iradio

Sub Category: uncategorized

Functions

16 Programmable Side Keys

CTCSS/DCS Code

High/Low Power Switching

Wide/Narrow Band Switching

Scanning

Monitor

Battery Saving

Low Battery Alerts

Emergency Alarm

Additional Encryption

TOT

Features

1. Long press sidekey1 to turn in monitor function

2. In the same channel, long push the toggle switch 2 seconds into [CH-] to turn on the emergency alarm in two radios

3. Long push the toggle switch 2 seconds into [CH+] to lock the keypad

Specification

General

Frequency Range	400MHz-480MHz
Channel Storage	16
Voltage	DC3.7V
Antenna Impedance	50Ω
Frequency Stability	±20ppm
Working Temperature	-10°C~+50°C
Working Current	TX Status: ≤1.3A \| RX Status: ≤0.45A
Battery Capacity	1100mAh
Dimension	99×62×32mm (without antenna & belt clip)
Weight	142g (without antenna & belt clip)

Tramsmitting

TX Power	2W±0.3 (DC4.2V)
Modulation Mode	F3E
Maximum Frequency Deviation	≤ 5KHz (Wide Band); ≤ 2.5KHz (Narrow Band)
Spurious Power	≤7.5µW
Adjacent Frequency Power	≤ -65dB (Wide Band); ≤ -60dB (Narrow Band)

Receiving

RX Sensitivity (12dB SINAD)	≤ 0.2µV (Wide Band); ≤ 0.25µV (Narrow Band)
Audio Power	≤ 1W (8ohm)
Audio Distortion	≤ 5%
Clustter Suppression	≥ 65dB
